Product Summary

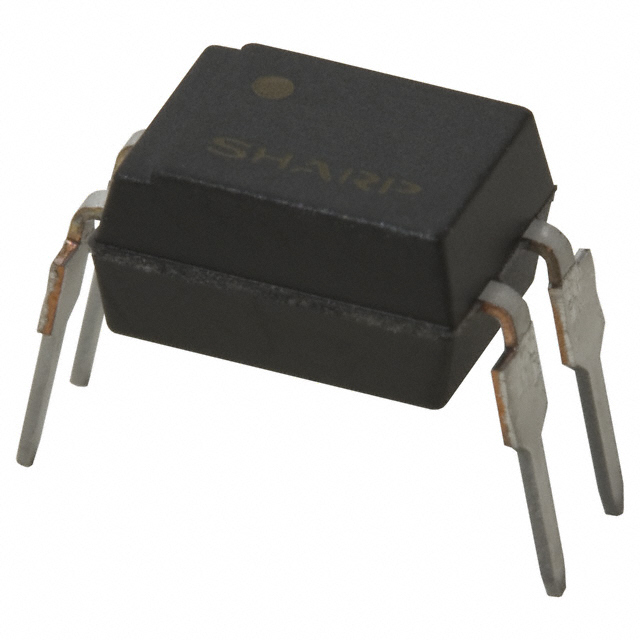

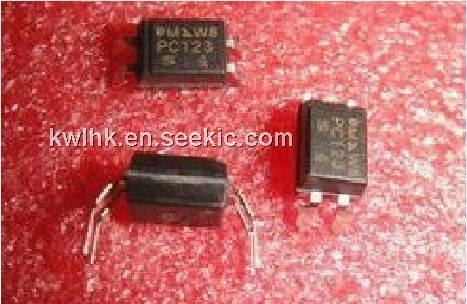

The PC123 is a Photocoupler. It is ideal for: (1)Power supplies; (2)OA equipment.
Parametrics
PC123 absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage V CEO: 70 V; (6)Emitter-collector voltage V ECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 Mw; (9)Total power dissipation Ptot: 200 mW; (10)Isolation voltage V iso: 5 kV rms; (11)Operating temperature T opr: - 30 to + 100°C; (12)Storage temperature T stg: - 55 to + 125°C; (13)Soldering temperature T sol: 260°C.
Features
PC123 features: (1)Conform to European Safety Standard; (2)Internal isolation distance : 0.4mm or more; (3)High collector-emitter voltage(VCEO : 70V); (4)Long creepage distance type; (5)Recognized by UL (No. E64380).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC12310NFZ0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler 50-400% CTR |
Data Sheet |
|
|
||||||||||||
|
PC12310NSZ0F |
Sharp Microelectronics |
Transistor Output Optocouplers Low Input Current PC123J00000F |
Data Sheet |
Negotiable |
|
||||||||||||
|
PC12310YFZ0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler 50-400% CTR |
Data Sheet |
|
|
||||||||||||
|
PC12311NSZ0F |
Sharp Microelectronics |
Transistor Output Optocouplers Low Input Current PC123AJ0000F |
Data Sheet |
|
|
||||||||||||
|
PC12311NSZ0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler Lead Free |
Data Sheet |
|
|
||||||||||||
|
PC12311YFZ0X |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler 100-250% CTR |
Data Sheet |
|
|
||||||||||||
 |
PC123A |
|
PHOTOCOUPLER TRAN OUT 4-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
PC123AJ0000F |
Sharp Microelectronics |
Transistor Output Optocouplers 50-150% CTR rank of PC123J00000F |
Data Sheet |
Negotiable |
|
||||||||||||
